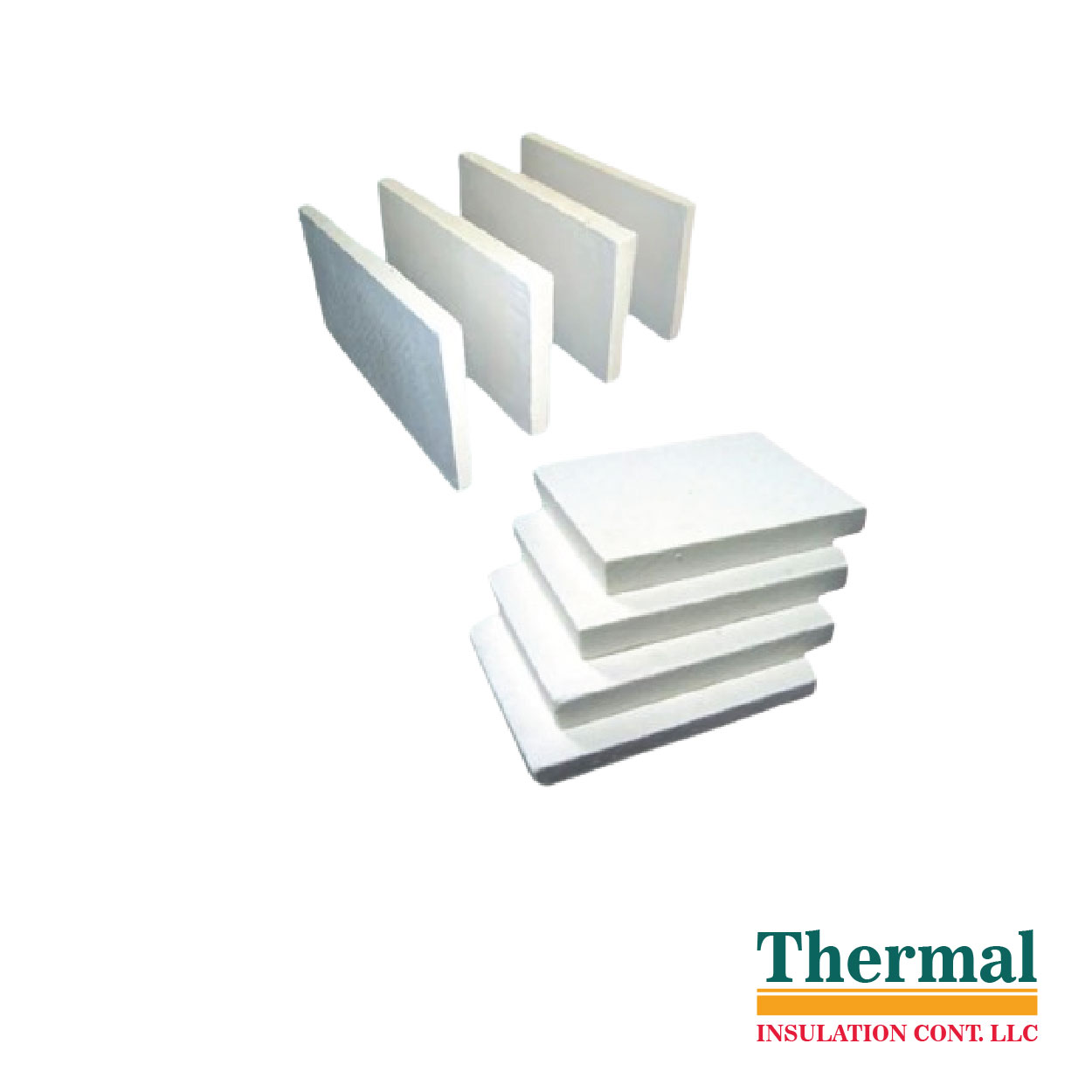

Ceramic Fibre Board

Why Ceramic Fiber Board Insulation?

Thermal Insulation offers Ceramic Fibre Board Insulation in the UAE, designed specifically for high-temperature industrial applications. Unlike conventional alternatives, our Ceramic Fiber Board is manufactured without any binding agents, ensuring strong tensile strength and chemical stability.

Available in various thicknesses and densities, the board supports both 1260°C and 1425°C temperature ratings, making it highly adaptable. Thanks to its double-needled structure, the board delivers enhanced performance with low thermal conductivity, making it a top-tier insulator. In addition to being lightweight, it offers excellent resistance to thermal shock, ensuring reliability in extreme environments.

This insulation board serves a wide range of industries. It’s ideal for industrial furnaces, kilns, and ovens, and works effectively as a lining material for back walls and insulation seals on furnace expansion joints, doors, and roofs. Furthermore, it’s suitable for pipe insulation, commercial dryer coverings, and is frequently used in heat treating and annealing furnaces. It also proves useful in furnace door linings, seals, and hot face repairs, including reusable turbine covers.

Applications of Ceramic Fibre Board:

• Industrial furnaces, kilns, and ovens

• Back and wall lining material

• Furnace expansion joints, door and roof heat insulation seal

• High-temperature pipe insulation

• Commercial dryer covers

• Heat treating and annealing furnaces

• Furnace door linings, seals, and repairs

• Reusable turbine covers

Features of Ceramic Fibre Board:

• Double-needled board construction

• Low thermal conductivity

• Excellent insulation performance

• High tensile strength

• Strong chemical stability

• Lightweight compared to alternatives

• Resistance to thermal shock

• Easy to cut and install

• Effective sound absorption

Benefits:

At Thermal Insulation, we supply durable Ceramic Fibre Boards that are lightweight, flexible, and built to withstand heat, impact, chemical exposure, and thermal shock. Moreover, if you’re concerned about availability in specific thicknesses, don’t worry — we maintain a wide-ranging inventory to meet all your insulation needs.

Sizes:

Ceramic Fibre Board (Grade 1260)

Widely used in industries operating up to 1260°C, such as:

• Reformers

• Reactors

• Automotive

• Boilers

• Power Plants

• Heat Recovery Steam Generators

• Exhaust Ducts

Due to its low thermal conductivity and zero dry-out period, this board is a preferred choice for clients across various sectors. Custom densities and thicknesses are available upon request.

Specifications:

• Density (kg/m³): 320 – 340

• Thickness: 6mm – 50mm

• Width: 500mm

• Length: 1000mm

Ceramic Fibre Board (Grade 1430)

Made from zirconium-based ceramic, this grade supports temperatures up to 1425°C, making it ideal for:

• Backup lining for furnaces

• Process industries

• High-temperature liners

• Kilns

• Fire protection systems

• Ladles

• Foundries

With superior thermal and chemical shock resistance, this board is trusted for insulation systems worldwide. It is also available in various densities and thicknesses.

Specifications:

• Density (kg/m³): 320 – 340

• Thickness: 13mm – 50mm

• Width: 500mm

• Length: 1000mm
