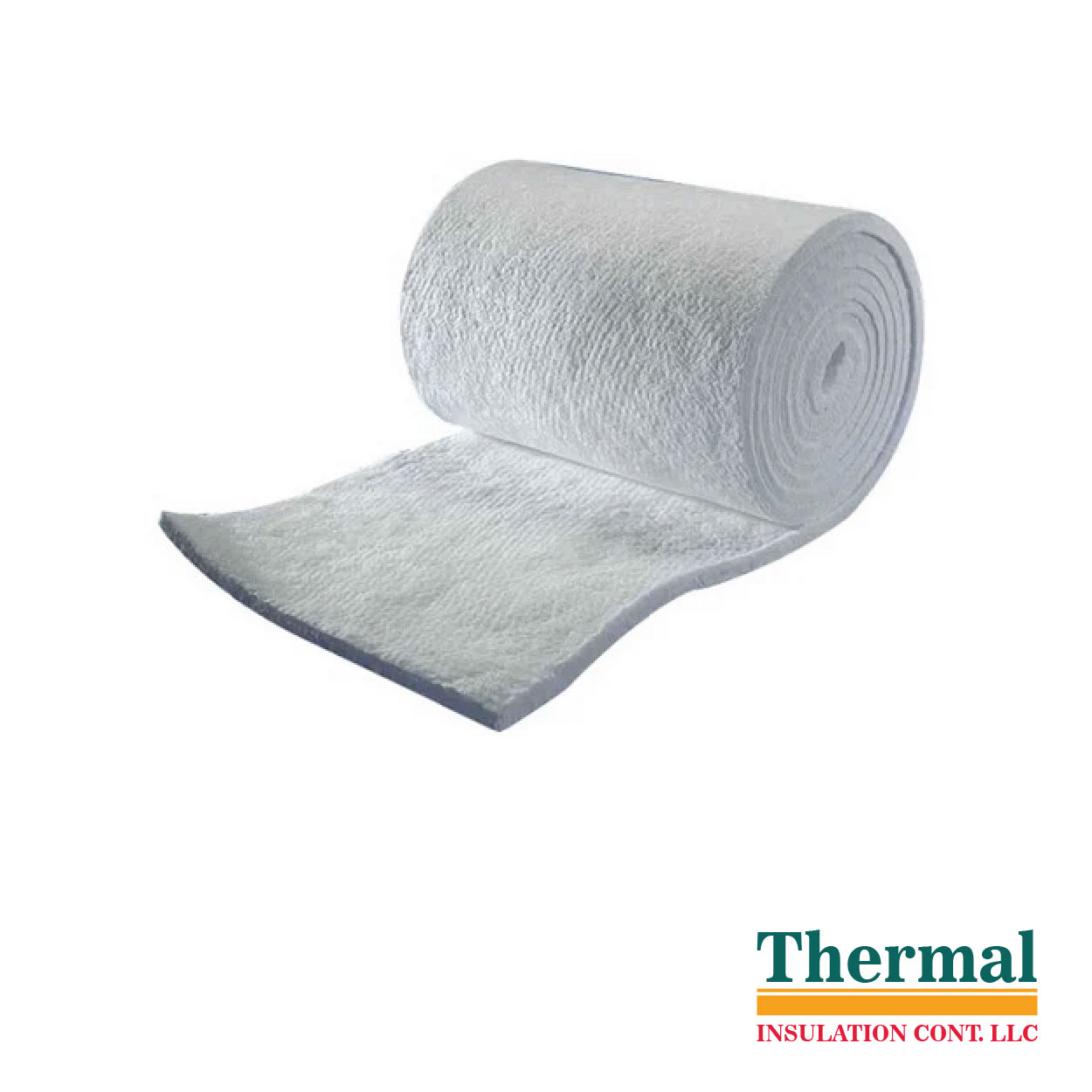

Fibrefrax® Durablanket®

The Fibrefrax®, Durablanket® Family of lightweight needled blankets are manufactured from Fiberfrax refractory ceramic fibres and provide effective solutions to a wide spectrum of thermal management problems.

Products are manufactured from alumina-silica materials and offer such characteristics as high-temperature stability, low thermal conductivity, low heat storage, excellent thermal shock resistance, lightweight, and superior corrosion resistance. Fiberfrax® Durablanket ceramic fibre blanket insulation products exhibit thermal stability at temperatures up to 1260°C (2300°F).

Properties/Type:  Durablanket  Z and  Durablanket  S.

Applications :

1) Furnace, kiln Reformer and boiler linings
2) Expansion joint seals
3) Thermal reactor insulation
4) High-temperature filtration
5) Furnace door linings and seals
6) Investment casting mold wrappings
7) Pressure and cryogenic vessel fire protection

• Sizes                       On Request
• Thickness              6 mm(Min)   50 mm(Max)
• Density(kg/m3)     64 (Min)       160 (Max)
• Roll Width(m)       610
• Roll Length(m)      7620 (till 25mm) 5080(38mm)   3810(50mm)
